PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine

Name: PRY568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine
Brand: PRINTYOUNG
Price: 9000 USD

Wholesale PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine from china suppliers

Brand Name : PRINTYOUNG

Model Number : PRY-568

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 9000 ~ 14000 Set

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Model : PRY-568-8T , PRY-568-15T , PRY-568-30T

Max. Pressure : 8 Ton , 15 Ton , 30 Ton

Max. Stamping Size : 510 * 390 mm , 590 * 440 mm , 780 * 540 mm

Max. Cutting Area : 490 * 370 mm , 570 * 420 mm , 760 * 520 mm

Worktable Area : 780 * 490 mm , 880 * 540 mm , 980 * 640 mm

Max. Working Height : 100 mm

Workable Stroke : 160 mm , 200 mm , 250 mm

Temperature : 0 ~ 300℃

Air Supply : 0.8 ~ 1.2 Mpa

Total Power : 4.8 kw , 5.8 kw , 7.8 kw

Weight : 900 kgs , 1200kgs , 1600 kgs

Dimension : 1120 * 890 * 1940 mm , 1200 * 960 * 1990 mm , 1440 * 1330 * 2010 mm

Contact Now

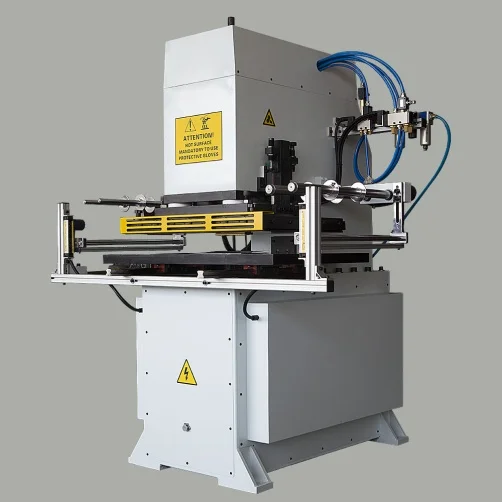

PRY-568-8T Hot Stamping Machine

PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine

Features

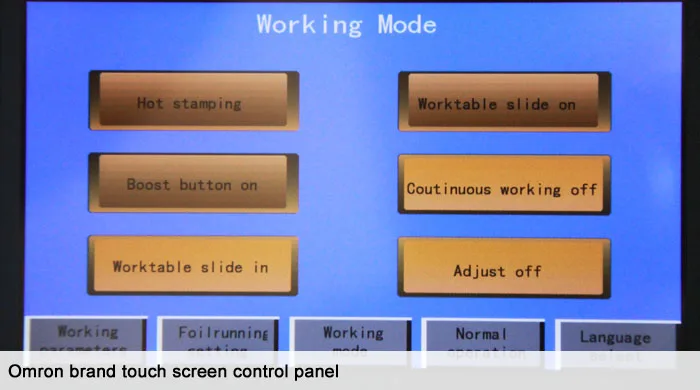

1.One man operation with easy parameters setting on touch screen,mainly used for hot stamping,embossing and die cutting on various materials.

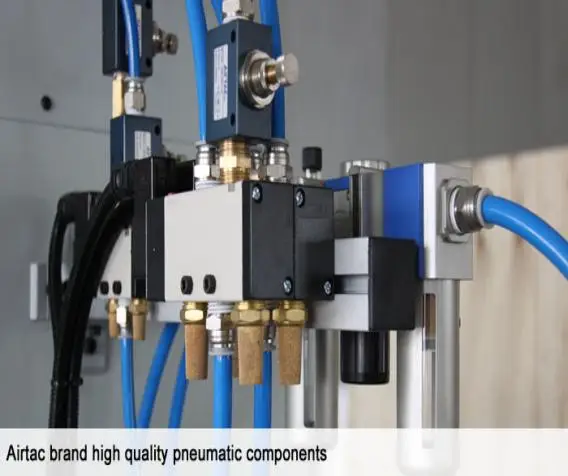

2.Boosting cylinder from German technology,air over hydraulic reinforcement driving system,freely switching from two-stroke and three-stroke,ensure high efficiency and energy-saving.

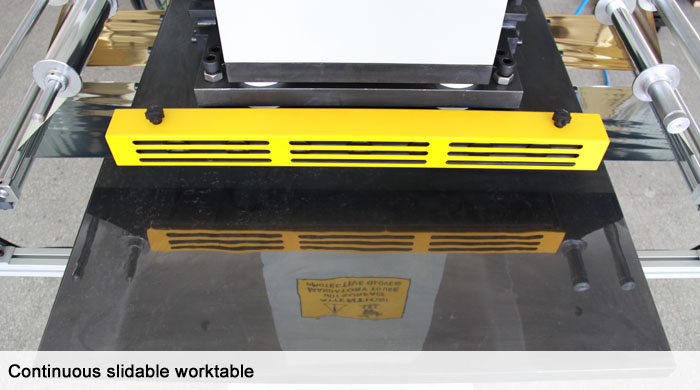

3.Linear guideway from HIWIN,Taiwan,ensure high precision on sliding out and in of the worktable.
4.CE standard,safety device and electrical system is equipped:omron safety light curtain, heat protective cover,omron touch screen,digital control,working status display.
5.Adjustable delay time and pressure for hot stamping to achieve various results.

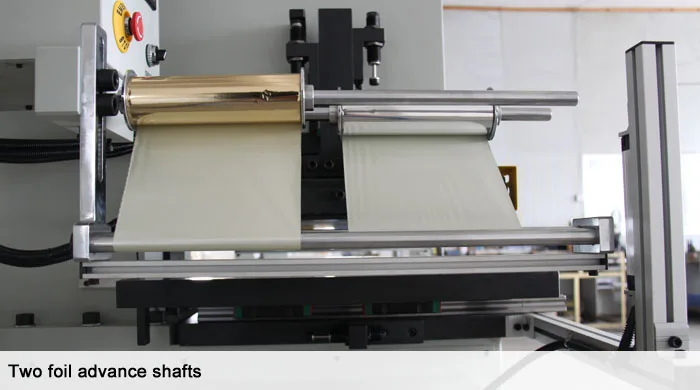

6.Two groups foil running,length and skip steps can be set on touch screen as you wish.
7.Foot pedal for more efficiency working and easy operation.

Technical Parameters

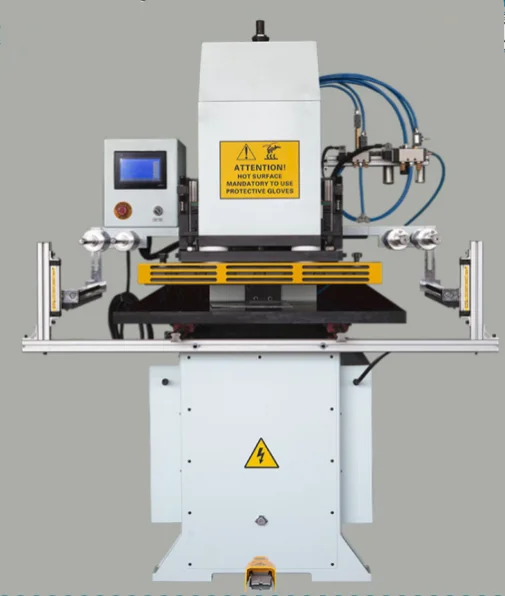

PRY-568-8T Hot Stamping Machine
Model	PRY-568-8T	PRY-568-15T	PRY-568-30T
Max. Pressure	8 Ton	15 Ton	30 Ton
Max. Stamping Size	510 * 390 mm	590 * 440 mm	780 * 540 mm
Max. Cutting Area	490 * 370 mm	570 * 420 mm	760 * 520 mm
Worktable Area	780 * 490 mm	880 * 540 mm	980 * 640 mm
Max. Working Height	100 mm	100 mm	100 mm
Workable Stroke	160 mm	200 mm	250 mm
Temperature	0 ~ 300 ℃	0 ~ 300 ℃	0 ~ 300 ℃
Air Supply	0.8 ~ 1.2 Mpa	0.8 ~ 1.2 Mpa	0.8 ~ 1.2 Mpa
Total Power	4.8 kw	5.8 kw	7.8 kw
Weight	900 kgs	1200 kgs	1600 kgs
Dimension	1120 * 890 * 1940 mm	1200 * 960 * 1990 mm	1440 * 1330 *2010 mm

Configuration

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
