PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom

  • 1
  • 2
  • 3

Brand Name : PRINTYOUNG

Model Number : PRY-1050PC

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 35000 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Weight : 6000 KG

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380 V

Dimension : 15000*1800*1400mm

Product Model : PRY-1050PC

Processing Paper Range : The Cardboard A/B/E

Max. Feeding Size : 1000*780mm

Min. Feeding Size : 300*120mm

Max. Belt Speed : 0-250m/min

Installation Dimensions : 15000*1800*1400mm

Contact Now

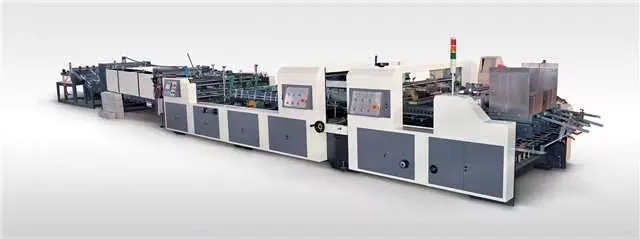

PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Folder Gluer Machine
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
Features
Product introduction of the whole machine
PRY-1050PC Full Automatic Multiple Function Hook Bottom Paste Box Machine is heavy machinery.The motor adopts dual frequency control to save power stably.Double-sided tooth rod is used to adjust the operation, which is simple and convenient.A plurality of belts with suction to ensure continuous and accurate paper feeding;Unique three-board folding in advance,so that more accurate feed paper;Provide upper and lower pasting bucket about two groups,suitable for a variety of products;The photoelectric counter can be used for quantitative counting.It is equipped with automatic kick plate device(optional automatic spraying device). Special materials are used to ensure the products are perfect.Suitable for general two-fold box,and 40%,60% or 40% hook bottom;On the basis of the basic configuration of this machine,the auxiliary parts are added pertinence,which can adapt to all kinds of special boxes.
Product main structure and work flow
Complete machine structure:frame,automatic paper feeding device,front section conveying device,middle section conveying device,middle section pressing device,back section correcting device,side output device of finished product,electrical control device.
Automatic belt suction feed paper→automatic gluing→automatic folding→automatic correction→automatic pasting box→finished→product output→optional person to put automatic strapping
Technical Parameters
PRY-1050PC Automatic Folder Gluer Machine
Product Model
PRY-1050PC
Processing Paper Range
The Cardboard A/B/E
Max. Feeding Size
1000×780mm
Min. Feeding Size
300×120mm
Max. Belt Speed
0-250m/min
Installation Dimensions
15000×1800×1400mm
Machine Weight
6000KG
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
Configuration
Paper Feeding Depart
Adopt integral cylinder lifting mechanism,easy to operate;The left and right sides of the baffle,with the product style left and right to adjust;The paper feeding part is equipped with a paper knife to adjust the asymmetric length according to the real sample.The suction strength is controlled by the suction switch;The integral coordination completes the fast speed simple continuous automatic correct feed paper.
Gluing Depart
The mechanical upper gluing tube is easy to operate,and the lower gluing tube is specially designed to accurately control the gluing amount,so as to ensure no gluing during high-speed operation.Easy to disassemble and clean.The rubber wheel is made of high quality stainless steel,which is not easy to be deformed.
Pre-Fold Depart
The folding part in advance adopts the lengthened model to truly realize the folding in advance of the carton at the first line of 180° and the third line of 135°,which is convenient for the carton to be opened quickly after stable folding in advance.
Lock Bottom Part
The bottom of the lock is removable with three plates,which can meet the requirements of various special-shaped boxes.The modular lock bottom unit reduces the adjustment time of changing orders.Equipped with four sets of high elastic hook seat and bottom box module; The base and hopper are made of high quality pure copper material,simple and practical in design,convenient for gluing the bottom part of the lock.
Folding Depart
The upper roller belt of the folding part increases the power separately to prevent the belt from slipping.Specially designed drive trapezoid wheel to correct deviation and adjust speed,in line with various adjustment operations,fast and convenient,so that the box sample can be closed accurately,away from the trumpet.The adjustment size is adjusted by motor,which is more accurate and convenient.
The Press Depart
The long distance upper and lower belt design can prolong the bonding time of carton and improve the bonding quality of carton.Full pneumatic pressure,one-button adjustment device,more convenient adjustment;The operator can adjust the belt speed according to the packing requirement.
Conveyor Depart
The conveying department adopts the belt imported from Switzerland,which is soft and moderate,and will not crush the finished product with the sponge belt.The whole conveying department can be moved back and forth,balanced pressing,neat conveying to ensure perfect quality.
Electrical and Transmission Systems
-1set 3.7KW motor with frequency conversion speed regulation,1set 2.2KW motor,2sets 1.1KW reducer
-Imported automatic speed regulating frequency converter 1set 5.5KW1,2sets 1.1KW,
-Two sub-control boxes for operation control Accessory equipment
Optional:pneumatic kick paper,air compressor(use 1.1KW 40L air compressor)
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
PRY-1050PC Automatic Corrugated Box Folder Gluer With Crash Lock Bottom
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
