YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors

Name: YTC41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors
Brand: PRINTYOUNG
Price: 62000 USD

Wholesale YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors from china suppliers

Brand Name : PRINTYOUNG

Model Number : YTC-41300

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1 Set

Price : US 62000 Set

Payment Terms : L/C, T/T

Supply Ability : 1 Set/Sets per Month

Delivery Time : 90 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Applicable Industries : Manufacturing Plant

Color & Page : Multicolor

Weight : 9600 KG

Warranty : 1 Year

Structure : CI

Type : Flexographic Printer

Condition : New

Plate Type : Screen Printer

Automatic Grade : Automatic

Voltage : 380V

Dimensions : 7.3*2.8*3.3m

Print Dimension : 1300mm

Print Speed : 10-180m/min

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Printing Color : 4 colors

Max. Width of Printing : 1260mm

Max. Speed of Material Printing : 120-150m/min

Thickness of Plate : 1.7mm,1.14mm, 2.84mm Or as your request

Power : Voltage: 380V, 3PH, 50HZ/60HZ

Contact Now

YTC-41300 Flexo Printing Machine

YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors

Technical Parameters

Main Parameter
Model	YTC-41300mm
Max Width Of Material	1300mm
Printing color	4 colors
Max. Width of Printing	1260mm
Machinery mechanical speed	10-180m/min
Max. Speed of Material Printing	120-150m/min,according to different material and print design
Thickness of Plate	1.7mm,1.14mm, 2.84mm Or as your request
Machine weight	Around 9600kgs
Machine dimension(LWH)	7.32.83.3m
Power	Voltage: 380V, 3PH, 50HZ/60HZ
Unwind Unit
Unwind Roller	Air shaft
Max. Width of Roller	1300mm
Max. Width of Printing	1260mm
Max. Dia. of Unwind (standard)	Φ1000mm
Type of Unwind	Air shaft
Unwind EPC	Electrical Edge Correction Device
Winder magnetic	10kg according to your material weight
Winder inner core diameter.	76mm
Traction Unit
Constitution of Traction	Aluminum roller
Printing Unit
Constitution of Printing	Aluminum Roller, Plate roller, Ceramic Anilox Roller, Chamber doctor blade, ink pump
Plate Roller	400mm, for other size, additional cost needed
Material of Plate	Resin
Drive Type	Drive by BIG DRUM GEAR
Color Register Type	Manual
Plate Lifting	Motor adjustment
Anilox Roller	Ceramic Anilox Roller: 1pcs/per color
ceramic cylinder roll(standard)	80-1000LPI
Frame thickness	100mm
Heating and Drying Unit
Type of Heating and drying	Blowing first then heating
Rewind Unit
Type of rewind	Central rewind
Max. Dia. of Unwind(standard)	Φ1000mm

Configuration

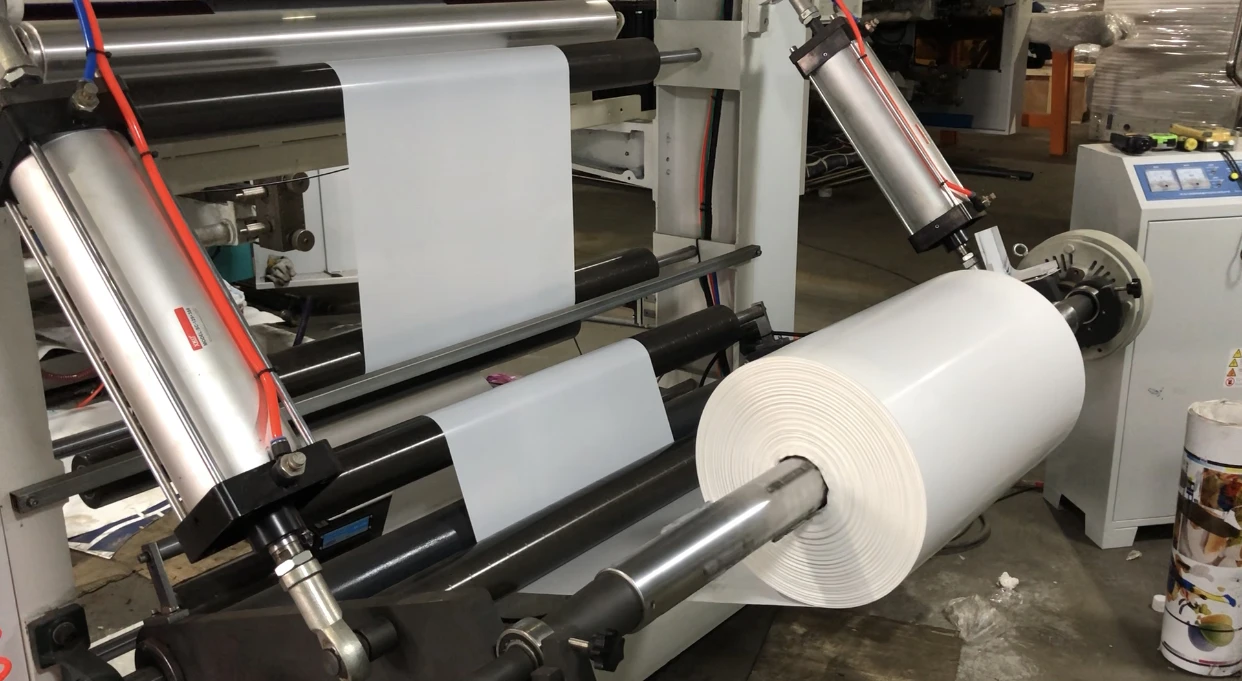

Unwind & Rewind Part

Air Shaft

Tight to material,flat material,better printing.

Tension Control

Control unwind parts balance material when running.

Pneumatic Cylinder Load & Unload

It is easy to transport and loading material.

Ultrasonic Web Guide

Make the rewind part be more tighter, tracking the edge swift when printing.

Hydraulic Station

Output hydraulic oil to the hydraulic cylinder on the machine.

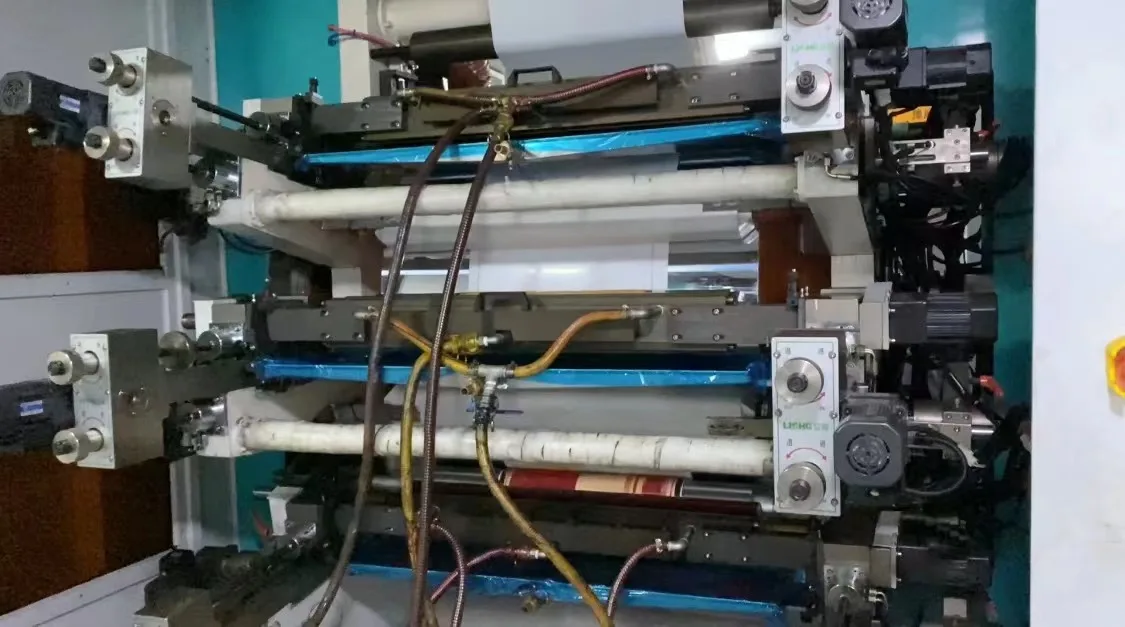

Printing Part

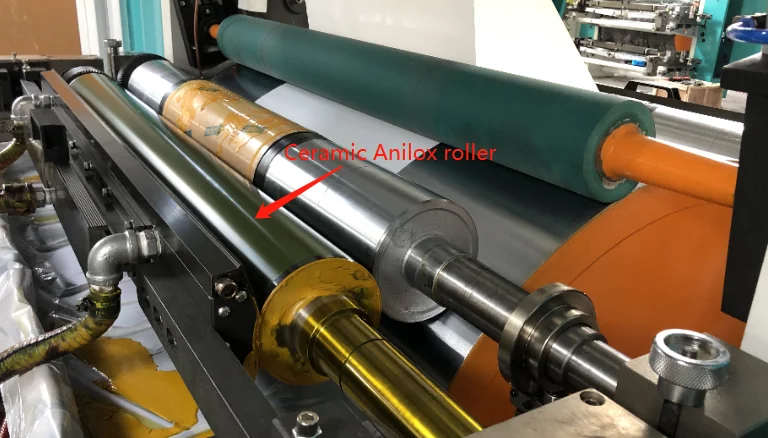

Ceramic Anilox Roller

Transfer ink evenly,improve the printing effect. 80-800 LPI

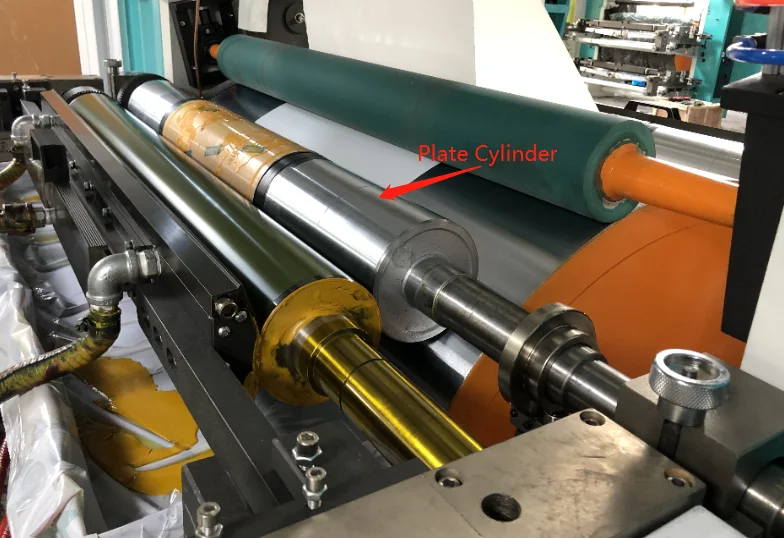

Printing Cylinder

Carrying plate,stick the plate on this roller 400mm(standard)

Ink Motor

Can independently control roller running,make the ink keep wet.

Chamber Doctor Blades

Evenly ink when printing process.Better for smell and solvent waste,speed can be fast,no need rubber roller to transfer ink.

Auto Lubricating System

Timing oil the big gear.

Ink Pump(6 pcs)

1.Suck the ink automatically.
2.Adopt the automatic circle system.

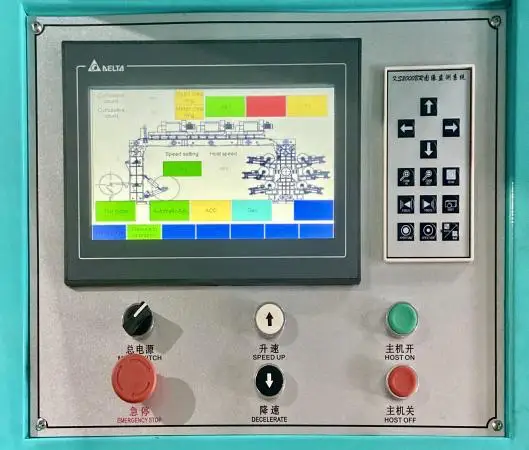

PLC Control

Touch screen.

Video Inspection

1.Check the print effect.
2.Together insert to machine.

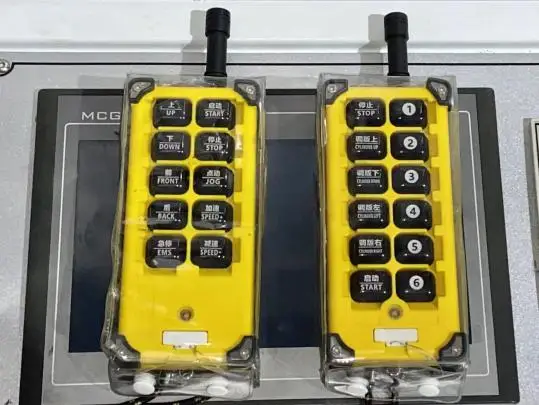

Remoter

1.One control the crane.
2.One for adjust the plate roller.

Central Drum

1.Made from superior alloy.
2.Steel and precise dynamic balance and electroplated treatment.
3.Installed the high precision encoder, synchronous the speed.

Transmission

Driven by a big gear,high accuracy.

Frame

1.Made of alloy cast iron with high strength.
2.Thickness:100mm.

Guide Roller

Aluminium roller Φ100mm(Surface oxidation treatment).

Drying Unit

Top Main Oven

3 pcs motor for the top(dry heater + fan) Total 54KW

Color Group Oven

Installed after the printing units.

Optional Device

Anilox Ultrasonic Cleaning Machine

Using ultrasonic vibration to peel off and clean the ink on the surface of the anilox roller.

Plate Mounting Machine with Camera

Mainly used in flexograhic printing machine to complete plate mounting operation.

Crane

Lift and down printing cylinders and anilox roller.

Applications

It is widely used for magazines,paper,books and packs for food,cosmetic and so on.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
