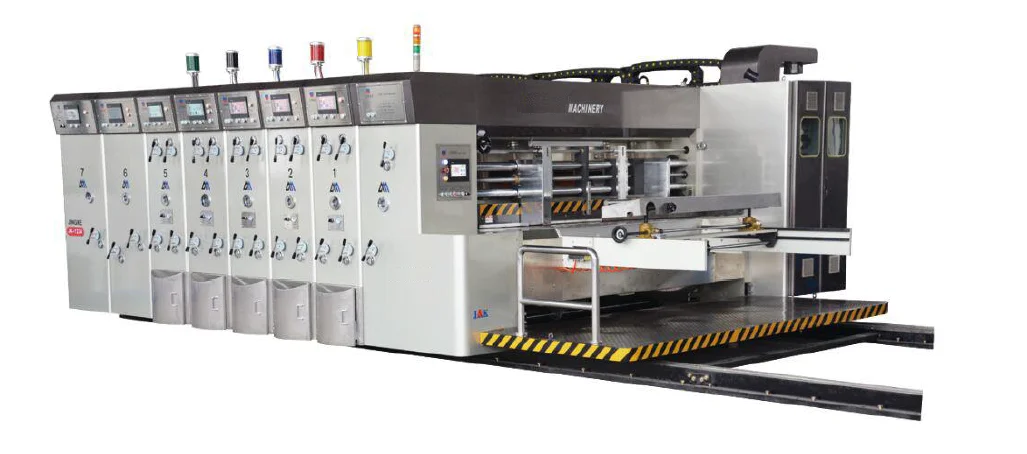

PRY-1025,1225 Automatic Lead Feeder Four Colors Flexo Printing Slotting and Die Cutting Machinery

Name: PRY10251225 Automatic Lead Feeder Four Colors Flexo Printing Slotting and Die Cutting Machinery
Brand: PRINTYOUNG
Price: 65000 USD

Wholesale PRY-1025,1225 Automatic Lead Feeder Four Colors Flexo Printing Slotting and Die Cutting Machinery from china suppliers

Brand Name : PRINTYOUNG

Model Number : PRY-1025,1225

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 65000 Set

Payment Terms : T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Condition : New

Warranty : 1 Year

Max Paper Size : 850 * 2500 mm

Min Machining Width : 280 mm

Print Version Thickness : 7.2 mm

Cardboard Thickness : 1.2 ~ 12 mm

Max Mechanical Speed : 160 sheets/min

Economic Speed : 100 sheets/min

Power of Main Motor : 15.5 kw

Colour Accuracy : ± 0.5 mm

Sink Accuracy : ± 0.75 mm

Module Accuracy : ± 0.75 mm

Contact Now

Printing Slotting and Die Cutting Machine

Features

The product can complete the cardboard printing,cutting,indentation,trimming,grooving,die cutting and other processes at one time.The whole machine is convenient,fast and flexible. The transmission gear adopts 40-60 Cr high quality alloy steel,the material,and the main drive gear and drive shaft are used to enlarge the virtual position,cancel the center wear, make the printing machine maintain long life overprinting precision;the whole machine adopts electric split,pneumatic lock,single combination,the machine has accurate color, exquisite printing pattern,convenient use and maintenance,high degree of automation.

Technical Parameters

Printing Slotting and Die Cutting Machine
Model	PRY-1025	PRY-1225
Max Paper Size	850 × 2500 mm	1200 × 2500 mm
Min Machining Width	280 mm	360 mm
Print Version Thickness	7.2 mm	7.2 mm
Suitable for Cardboard Thickness	1.2 ～ 12 mm	1.2 ～ 12 mm
Maximum Mechanical Speed	160 sheets/min	160 sheets/min
Economic Speed	100 sheets/min	100 sheets/min
Power of Main Motor	15.5 kw	15.5 kw
Color Accuracy	± 0.5 mm	± 0.5 mm
Sink Accuracy	± 0.75 mm	± 0.75 mm
Module Accuracy	± 0.75 mm	± 0.75 mm

Configuration

Machine Clutch

The electric control machine is attached with the alarm bell,and continues to ring the bell to ensure the safety of operators.Air-pressure-type interlocking device.The main machine motor starts the protection device,and the main machine is not running,when the whole machine is not locked.

Send Paper System

*Send paper at the front edge.
*Supply paper counter,set and display the production quantity,automatic alarm.

Send Paper Roller

*The outer diameter of the upper feeding roller is Ø136mm,and the balance is corrected. The outer diameter of the paper roller is Ø136mm,coated with hard chromium.
*The paper roller clearance dial is manually adjusted with the adjustment range of 1.2~12 mm.

Printing Roller(Edition Roller)

*Outer diameter is Ø410mm (including the outer diameter dimension).
*Grinding on the surface of the steel pipe,coated with hard chromium.
*Do the balance correction,and run smoothly.
*Ratchet fixed reel shaft.
*Full plate slot,10mm 3mm pad.
*With quick plate changing device,loading and unloading printing plate convenient and fast, with foot switch electric control positive and reverse.

Printing Roller

*The outer diameter is a Ø136mm wall thickness of 18mm.
*Grinding on the surface of the steel pipe,coated with hard chromium.
*Do the balance correction,and run smoothly.
*The printing roller clearance dial shall manually adjust the adjustment range of 1.5~12 mm.

Send Paper Up and Down Roller

*Upper Roller:the outer diameter is Ø 86mm thick wall steel pipe,with two outer diameter Ø120mm paper ring.
*Lower Roller:outer diameter of Ø136mm thick wall steel pipe,surface grinding,coated with hard chromium.
*The paper roller clearance dial is manually adjusted with the adjustment range of 1.2~12 mm.

Net Print Roll

*The outer diameter is the Ø200mm.The wall thickness is 22mm.
*The surface of the steel pipe grinding,pressing the mesh pattern,plating hard chromium.
*Do the balance correction,and run smoothly.
*The number of mesh items is 200 in the first group,220 in the second group,240 in the third group and 260 in the fourth group(optional).
*Cooperate with the pneumatic automatic lifting device of the paper delivery system (contact between the mesh roller drops and the printing plate,and separate between the mesh roller rises and the printing plate when stopping the paper delivery).
*Mesh roller with wedge type beyond the clutch,uniform ink,ink washing is convenient and fast.

Phase Adjustment Mechanism

Planetary gear construction.Printing phase is adjusted by phometer control and electric digital 360(Operation and stop can be adjusted).Manually adjust the lateral position of the roll,adjust the distance ±7.5mm.

Ink Circulation

*Air pressure diaphragm pump,stable ink supply,simple operation and maintenance.
*Ink filter net,filter impurities,ink separation.

Printing Phase Fixing Device

When the machine is separated or adjusted in phase,the brake mechanism limits the rotation of the machine and keeps the original gear position fixed point.

Main Drive Gear

*The material is:60 Cr high quality alloy steel,carbonization quenching treatment and processing.
*Level 7 accuracy(at the same level as the automobile transmission box gear)smooth operation,small noise,hardness HRC 58 ~ 62,long life,10 years will not wear within 10 years,can achieve long-term printing accuracy.

Keyless Connection Loop

The use of tightening key connection,can make the shaft and gear complete seamless connection,in the large torque when there will be no gap,installation and maintenance is more convenient,can make the long-term transmission accuracy is high,to ensure the printing cover.

Die Roll(Lower Roll)

*45 # coil steel material surface grinding,coated with hard chromium.
*Balancing correction to increase operation stability.
*The spacing of the knife die fixing screw holes is 100mm.
*Applicable knife die height 25.4mm.
*Thickness of wood formwork:16mm (three-layer plate) 13mm (five-layer plate).

Rubber and Roller(Upper Roller)

*45 # coil steel material surface grinding,coated with hard chromium.
*Balancing correction to increase operation stability.
*Manual adjust clearance with knife die roll.
*10mm (outer diameter 389mm) and width 250mm.
*Youli glue uses super resistant to high quality products,can be disassembled,can quickly replace the new Youli glue,restore the die-cutting precision.
*Detachable Youli glue automatic grinding device,Youli glue wheel line speed has automatic compensation function,can be automatically compensated after grinding,to maintain the accuracy of each batch of cartons.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
