PRY-2000 Automatic Lead Edge Three Colors Flexo Printing Slotting And Die Cutting Machinery

Name: PRY2000 Automatic Lead Edge Three Colors Flexo Printing Slotting And Die Cutting Machinery
Brand: PRINTYOUNG
Price: 56000 USD

Wholesale PRY-2000 Automatic Lead Edge Three Colors Flexo Printing Slotting And Die Cutting Machinery from china suppliers

Brand Name : PRINTYOUNG

Model Number : PRY-2000

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 56000 Set

Payment Terms : T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Condition : New

Warranty : 1 Year

Max Paper Size : 850 * 1700 mm

Min Machining Width : 350 mm

Print Version Thickness : 7.2 mm

Cardboard Thickness : 1.2 ~ 12 mm

Max Mechanical Speed : 150 sheets/min

Economic Speed : 120 sheets/min

Power of Main Motor : 22 kw

Colour Accuracy : ± 0.5 mm

Grooving Accuracy : ± 0.5 mm

Die Cutting Accuracy : ± 1 mm

Contact Now

PRY-2000 Printing Slotting and Die Cutting Machine

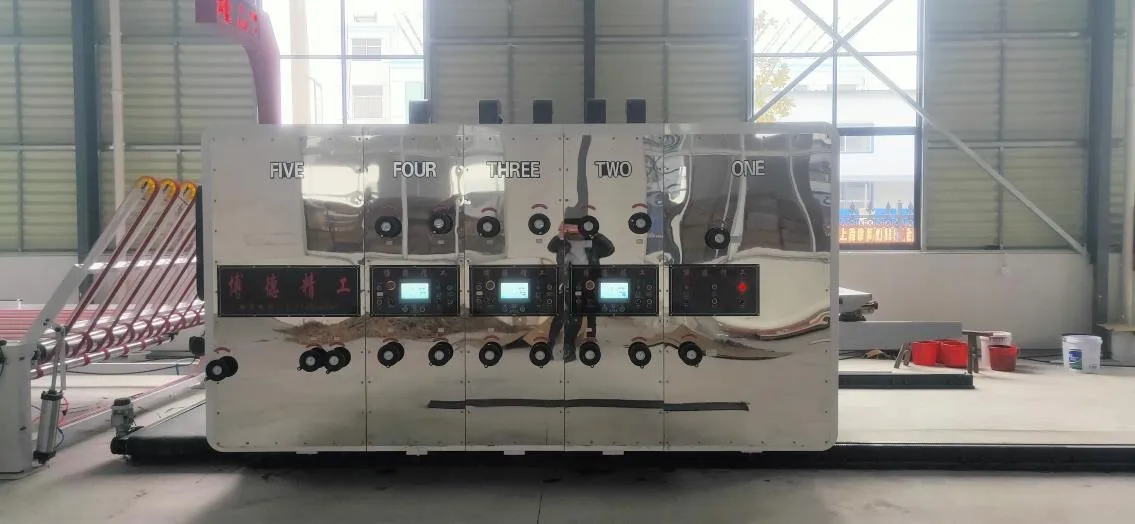

PRY-2000 Automatic Lead Edge Three Colors Flexo Printing Slotting And Die Cutting Machinery

Features

This machine can simultaneously carry out three-color printing,slitting,creasing,trimming, slotting,die-cutting, and other multi-processes on cardboard.It adopts a Taiwan roller-type front positioning automatic paper feeding mechanism,adjustable air volume,and frequency control.The whole machine is convenient,fast,and flexible.The transmission gear is made of 40-60Cr high-quality alloy steel,material carburized and quenched; the main transmission gear and transmission shaft adopt up tight key-free coupling method which enlarges the virtual position;cancelling the wear of the center,so that the printing press can maintain a prolonged accuracy. The machine has an accurate color register,fine printing pattern;besides it’s easy to use and maintain due to its high degree of automation.

Technical Parameters

PRY-2000 Printing Slotting and Die Cutting Machine
Maximum Paper Size	850 × 1700 mm
Minimum Processing Size	350 mm
Printing Plate Thickness	7.2 mm
Applicable Cardboard Thickness	1.2 ～ 12 mm
Design Maximum Mechanical Speed	150 sheets/min
Economical Speed	120 sheets/min
Main Motor Power	22 kw
Color Accuracy	3-color ± 0.5 mm
Grooving Accuracy	± 0.5 mm
Die Cutting Accuracy	± 1 mm

Configuration

Machine Clutch

*Electrically controlled machine clutch with an alarm bell and continuous bell warning during travel to ensure the safety of operators.
*Pneumatic interlock device.
*Motor start protection device for the main machine, the main machine cannot be operated when the whole machine is not locked.

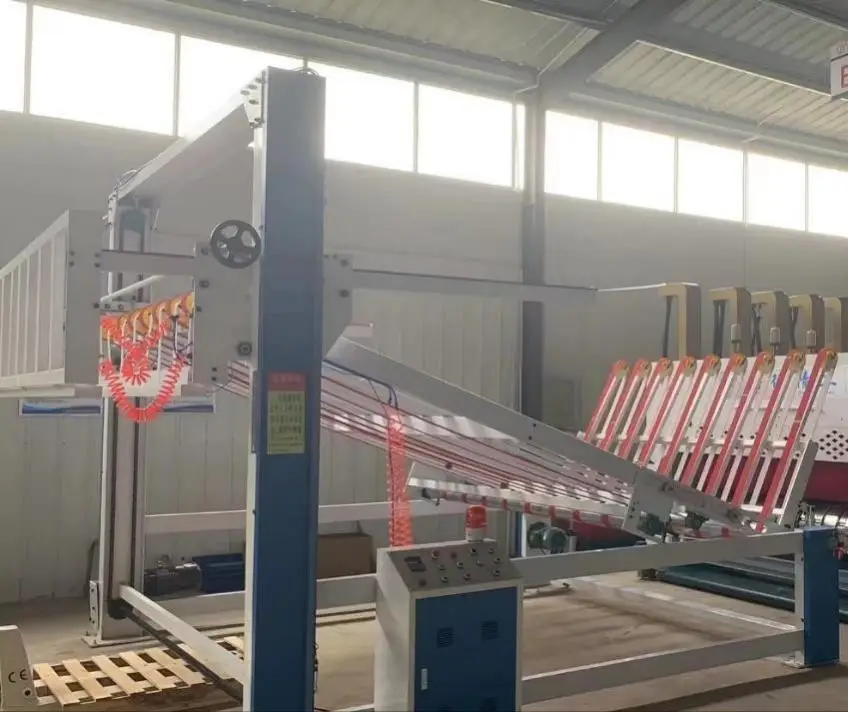

Lead Edge Rollers-Paper Feeding System

*Suction wind-assisted paper feeding,fan 7.5KW,according to the different conditions of cardboard bending,adjusts wind volume to ensure smooth paper (Frequency conversion adjustment of air volume)
*Equipped with a Taiwanese roller-type front positioning automatic paper feeding mechanism.
*Electric adjustment of side stopper and backstop box position.
*Paper supply counter,set,and display production quantity,automatic alarm.

Dust Removal Device

Equipped with a brush dust removal device,to remove the impurities on the printing surface of cardboard and improve the printing quality.

Paper Feeding Rollers

*The outer diameter of the upper feed roll is coated with wear- resistant rubber.
*The outer diameter of the lower feed roller is Ø136mm, plated with hard chrome.
*The paper feed roll gap dial is manually adjusted, the adjustment range is 1.2 ~ 12mm.

Printing Roll(Plate Roll)

*The outer diameter is Ø400mm (including the outer diameter of the plate).
*Steel tube with a ground surface, and plated with hard chrome.
*Balance correction to ensure a smooth operation.
*Ratchet fixing type plate winding shaft.
*Full plate hanging groove, suitable for 10mm×3mm hanging plate.

Printing Press Rollers

*The outer diameter is Ø136mm,wall thickness is 18mm
*Steel tube with a ground surface,and plated with hard chromium.
*Balance correction to ensure a smooth operation.
*Printing pressure roller gap dial can be adjusted manually in a range of 1.2~12mm.

Upper and Lower Paper Feeding Rollers

*Upper roller:Ø86mm thick-walled steel tube with two Ø136mm outer diameter feeding rings.
*Lower roller:Ø136mm outer diameter thick-walled steel tube with ground surface and hard chrome plating.
*Manual adjustment of paper feed roller gap dial;the adjustment range is 1.2~12mm.

Anilox Rollers

*The outer diameter is Ø200mm,wall thickness 22mm.
*Made with steel tube with a ground surface,embossed mesh,hard chrome plating.
*Balance correction to ensure a smooth running.
*Mesh number is 200 for the first group,220 for the second group,and 240 for the third group.
*Cooperate with the paper feeding system pneumatic automatic lifting device (the anilox roller descends and touches the printing plate when feeding the paper,and the anilox roller rises and separates from the printing plate when the paper feeding stops)
*The anilox roller is equipped with a sprag-type overrunning clutch, which is convenient and fast for ink leveling and washing.

Phase Adjustment Mechanism

*Planetary gear structure.
*Phase saving function,one key adjustment.
*The printing phase is controlled by a phase meter and electric digital 360°adjustment. (Running and stopping can be adjusted)
*Manual adjustment of lateral position,adjustment distance ±7.5mm.

Ink Cycle

*Pneumatic diaphragm pump,stable ink supply,easy operation,and maintenance.
*Ink and oil filter,filtering impurities,water,and ink separation.

Printing phase Fixtures

When the machine is separated or the phase is adjusted,the brake mechanism limits the machine rotation and keeps the original gear position fixed point.

Main Drive Gear

*Material:60Cr high quality alloy steel,carburized and quenched processing.
*Grade 7 precision (same grade as automobile transmission gears) smooth running,low noise,hardness HRC58-62,long life,basically no wear within 10 years; can achieve long-term printing register.

Key-Free Connection Ring

Adopts an up-tightening key-free connection,which can make the shaft and gear have a seamless connection,there will be no clearance when using ample torque,and it is more convenient for installation and maintenance,which can make the long-term transmission accuracy high to ensure the printing register.

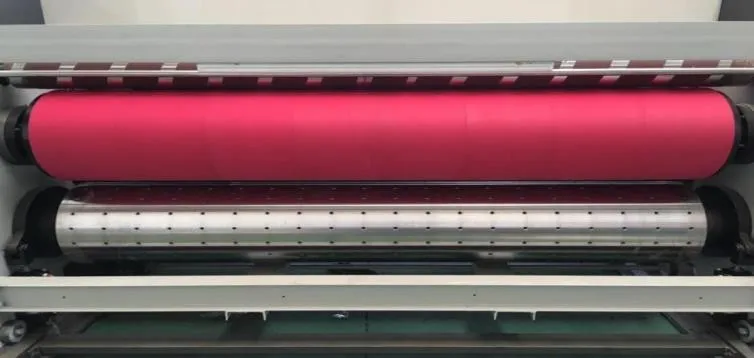

Die Cutting Roller(Lower Roller)

*The surface of 45# coil steel material is ground and plated with hard chrome.
*Balance correction to increase running stability.
*The distance between the die fixing screw holes is 100mm.
*Applicable die height 25.4mm.
*Wood formwork thickness: 16mm (for three-layer boards) 13mm (for five-layer boards)

Rubber Roller(Upper Roller)

*The surface of 45# coil steel material is ground and plated with hard chrome.
*Balance correction to increase running stability.
*The gap can be manually adjusted with the die roller.

*The thickness of the rubber is 10mm (outer diameter 408mm),and the width is 250mm.
*Made with high quality PU;it’s removable, so that the new rubber can be replaced quickly and the precision of die-cutting can be restored.
*Detachable automatic grinding device for PU rubber,the linear speed of PU rubber wheel has an automatic compensation function,which can automatically compensate the line speed after grinding PU rubber,so as to maintain the accuracy of each batch of cartons.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
