Fully Automatic 280m/Min Carton Folder Gluer Box Making Machine 6kw

Name: Fully Automatic 280mMin Carton Folder Gluer Box Making Machine 6kw
Brand: PRINTYOUNG
Price: 1 USD

Wholesale Fully Automatic 280m/Min Carton Folder Gluer Box Making Machine 6kw from china suppliers

Brand Name : PRINTYOUNG

Model Number : ZH-1200G

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Voltage : 380V

Power : 6kw

Dimension : 10500*1300*1300mm

Weight : 3000kg

Warranty : 1 Year

Production Capacity : 220m/min

Line speed : 280m/min

Usage paper : 220~600g/m2

Paper feeding : Automatic feeding

Glue : Cold glue

Contact Now

ZH-1200G Fully Automatic Folded Box Making Machine

Features

ZH-1200G folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.

Technical Parameters

ZH-1200G Fully automatic folded box making machine
Line speed	280m/min, Continuous adjustment
Usage paper	220~600g/m2 Paperboard, E corrugated board
Box forming	Either side folds, either side pre-folds, crash lock bottom
Fold method	1st & 3rd folds 90°, 2nd & 4th folds 180°
Paper feeding	Automatic feeding
Glue	Cold glue
Electric	6kw, AC380V
Weight	3000kg
Dimension	10500×1300×1300mm

Fully Automatic 280m/Min Carton Folder Gluer Box Making Machine 6kw

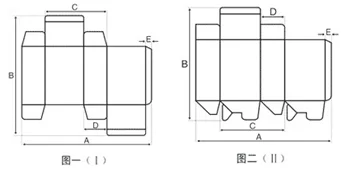

Main Technical Datas
Box Type	A Max	A Min	B Max	B Min	C Max	C Min	D Min	E Min
Straight-line box(1)	1000	160	700	90	450	100	12	10
Pre-fold box(1)	1000	220	700	90	450	100	17	10
Crash-lock bottom box(11)	1000	200	700	90	450	100	70	10

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
